When I was discharged from the Air Force in 1964 Cubic took pity on a young RADAR
technician and hired me. Spent 2 years there working on their fantastic state of the
art projects. Not having the smarts in math to get an engineering degree I switched
my college major to business in 1966 when Radio Shack hired me to open their first
west coast store in La Mesa, CA. One of the people I met there turned into a life long
friend. He recently retired from Cubic as a Vice President after 50 years. Even though
I left Cubic before they acquired Swan I started my vintage collection with the Swan 270B
below and finished it with the Cubic Astro.

My New/Used Swan Sygnet 270B


Purchased from K6DBX October 2015. He worked on these radios at Swan and when he left there
worked at Atlas till they closed.

Beautiful inside and out. I can finally join the Vintage SSB Nets.

My Swan / Cubic 100MXA

Purchased at the 2016 Yuma Hamfest.


I stole this one. Worked 100% when I acquired it. All solid state. Drawings are dated 1979.
You can see the Cubic Military influence in the circuit board designed. The "A" model had several
major RF improvements inside.


My Swan 500/700cx

Purchased from the Cubic Amateur Radio Society

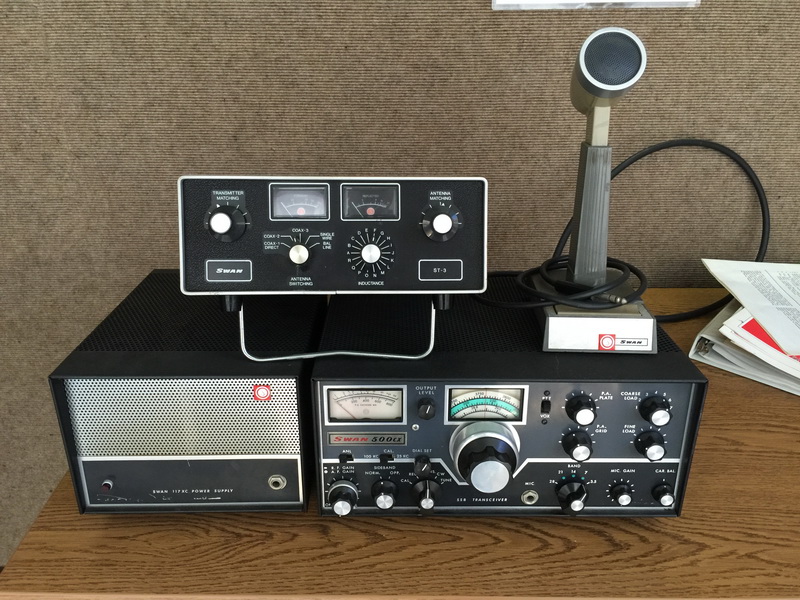

500/700cx installed in the "Vintage" operating position.

I set a little computer fan on top. Takes a lot of heat out of the 8950 finals.

What, you may ask, is a Swan 500/700CX? Well, this was a one owner radio. In 1984 the
Cubic Club sent it back to the "Cubic" factory in Oceanside where they re-built the
final stage to a 700CX. Now puts out over 450 Watts PEP.

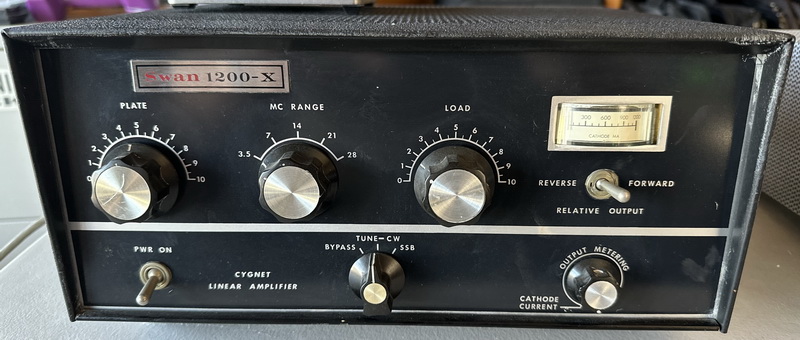

Swan 1200X. Purchased from the owner of Alpine Antennas. Was converted to 6LQ6 tubes.
Puts out 400W in CW.
In the barn to hop up the Kenwood 440.

Cubic Astro 103

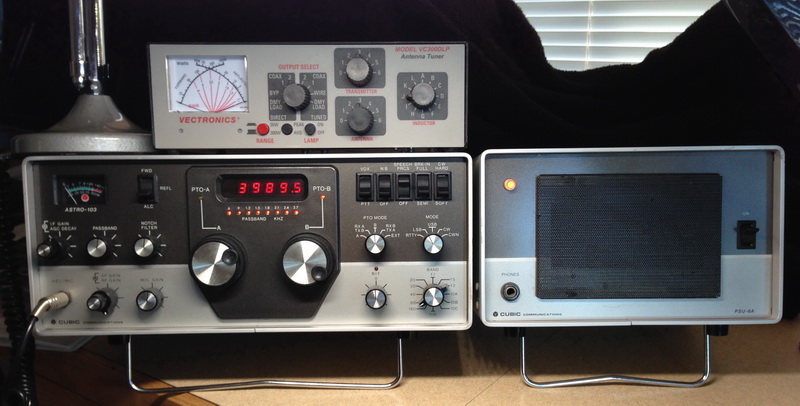

October 1, 2016. I can't believe it but I finally found a 103 at a great price. Beautiful condition and works great.
Like the Swan 270B that started this vintage quest last year I found the 103 at the second, annual,
Lakeside CA ARC Swap Meet.

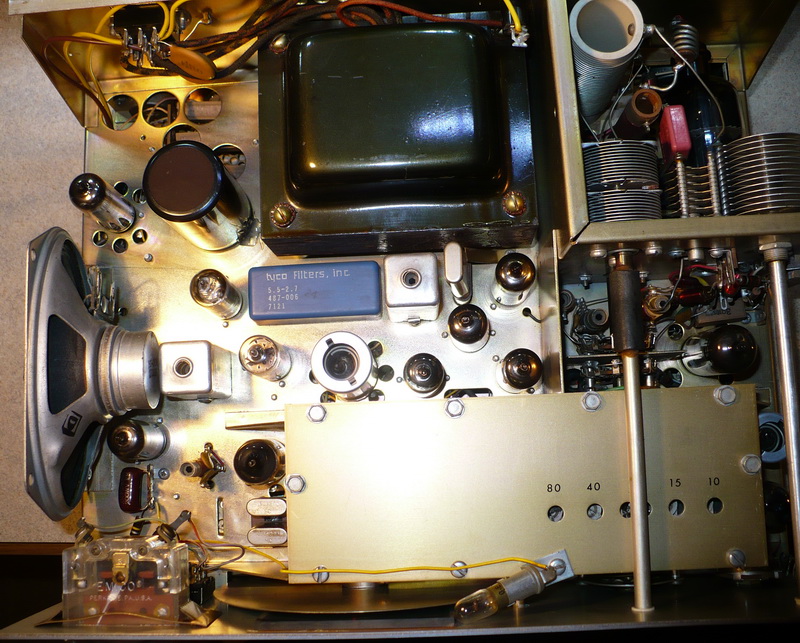

Inside the Astro 103

Cubic 103 Hard To Find Manuals

Manuals off the internet. Saved here. Right click to download.

Astro 102BX Service Manual Addendum. ( Makes a 102 into a 103 )

Use above with 102BX Service Manual below.

Astro 103 adjustments and LO Board 10 Meter modification.

Astro 103 Operators Manual.

Astro 103 restoration notes.

Astro 102BX Service Manual.
